Product Description:
Model:ECO-GS6502G-1
Outer Plate: 7mm Tempered glass panel
Stove:ABCCD/ABBCD/AABCD
Voltage: 1.5V,110/220V
Stove rack: Cast iron frame/Enamel Pan Support
Knob: B/C/D/F
Adapter: A3 iron connector
Valve: pulse ignition (battery powered)/micro valve/strong electric pulse ignition + flameout protection
Product size : 760*510*120mm,12.4kg
Carton: 810*550*145mm,1pcs/CTN,14kg
5 CORE ADVANTAGES:
♦Design & Service Experience
Rich OEM/ODM experience; exclusive custom designs by senior designers, aligning with clients’ product needs.
♦Quality Assurance
Comprehensive quality control: dedicated inspectors at each production stage, strict adherence to standardized procedures, ensuring factory-standard products.
♦Production & Delivery

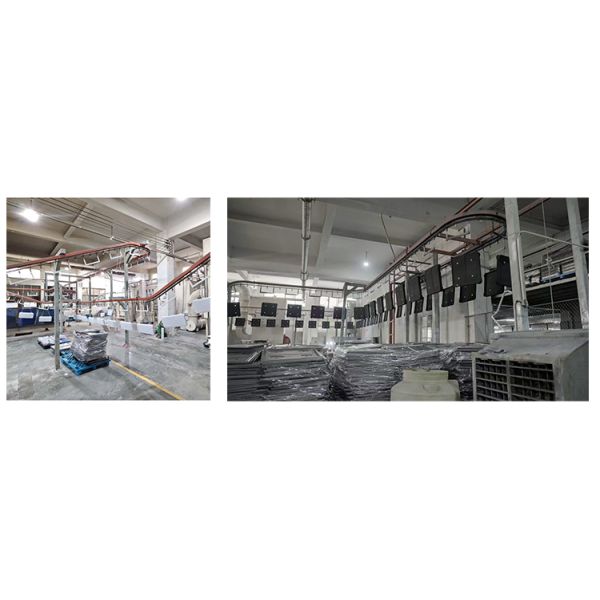

Fully automated lines (100+ equipment) support 24/7 operation, guaranteeing stable capacity and on-time delivery.
♦Order & Sample Efficiency
Rapid order response: small-batch samples in 7 days, large-batch samples in 15 days.
♦Distribution & Wholesale
Covers distribution/wholesale; independently developed products, brand collaboration options, and long-term stable supply.
PRODUCT CUSTOMIZATION PROCESS:
✔ Select Style
✔ Product Offer
✔ Effects Design
✔ Confirmation Sample
✔ Produce to order
✔ Payment and shipment
Customized optation:
☑️Logo color options: White/Gray/Red/Blue/Yellow and so on
☑️Stove options: A/B/C/D
Also can replace copper cap
☑️Knob options: B/C/D/E
☑️Pan support:Enameled wire rack(square flat iron) ; Cast iron rack(die-cast iron)

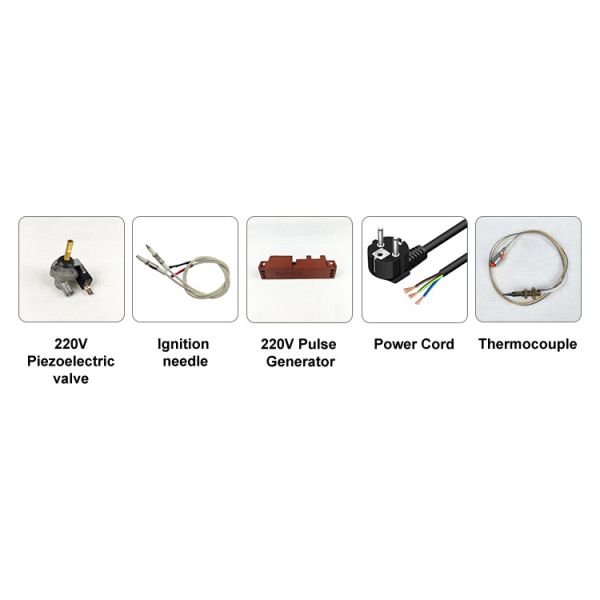

☑️Ignition method:
1,Knob type - pulse ignition:Use knob to control the 1.5V pulse generator for ignition (battery powered)
2,Knob type - pulse ignition:Use knob to control the 220V pulse generator for ignition (household electricity supply)
3,Knob type - strong electric pulse ignition + flameout protection:Use knob to control the 220V pulse generator for ignition (household electricity supply)
☑️Nozzle (determines the type of gas used)
NG nozzles : LPG nozzles
☑️Adapter: A3 iron connector/zinc alloy connector
等图片
FAQ:
Q:What are the product dimensions? What are the cabinet opening dimensions?
A: plate size:760*510mm,cabinet opening dimensions:730*480mm
Q:what’s the heat output?
A:A:3.3kw/ B:2.75kw C:1.75kw/ D:1.0kw
Q:How many days to make a customized sample?
A:It's about 5-7 days
